Flow chemistry system for complete control over your experiments
Flow rate range from 1 μL to 10 mL/min
Complete control
Manual or automated experiments

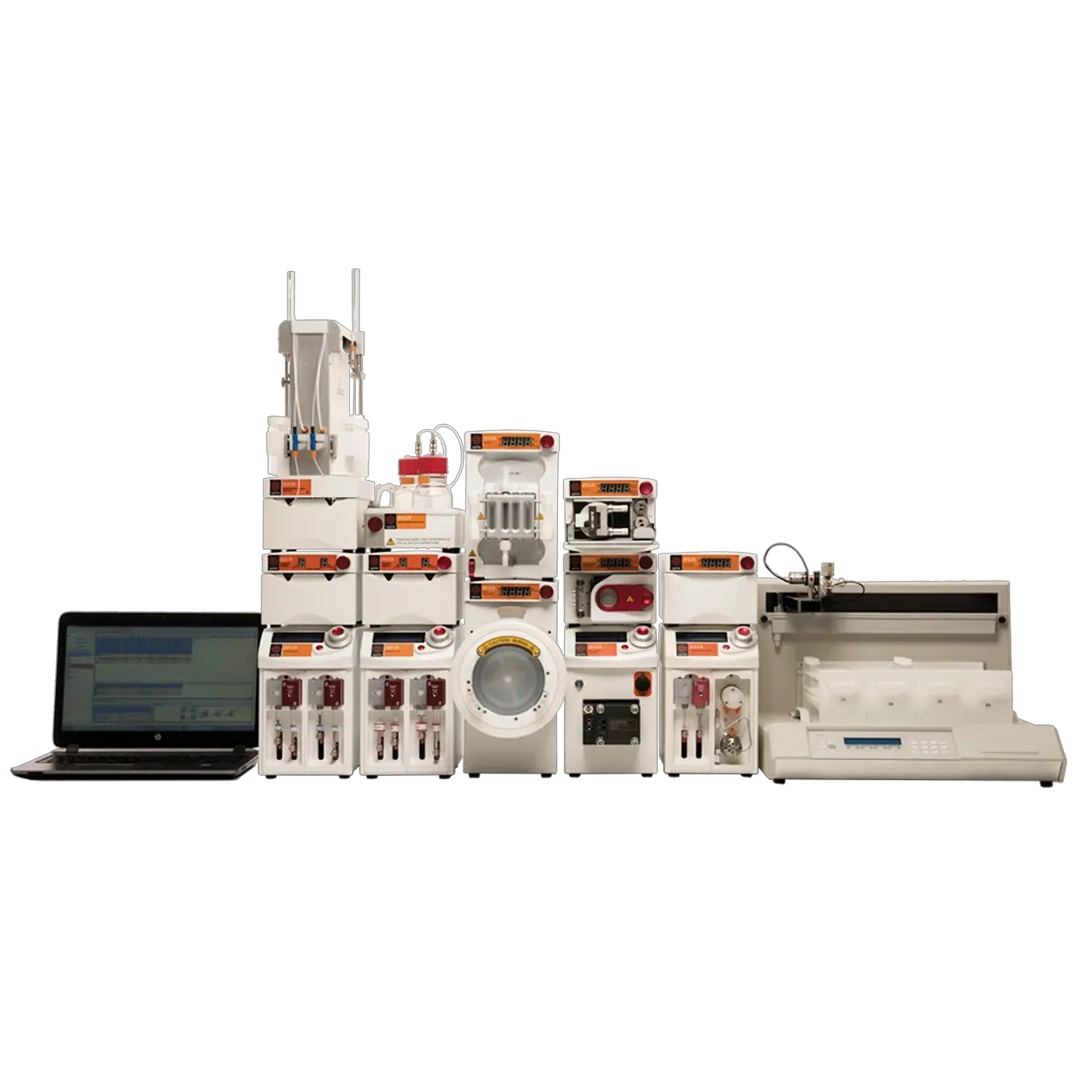

Asia Flow Chemistry

Asia does it all

With the Asia Flow Chemistry System, chemists have complete control over their experiments. It’s designed for flexibility, making it easy to set up and run both manual and automated experiments. Whether working on milligram or kilogram production scales, Asia supports a wide range of temperatures, pressures, and reaction times to match your specific needs.

All wetted materials in the Asia system are designed for maximum chemical resistance, ensuring years of continuous service.

Winner of the R&D 100 Award for innovation, the Asia Flow Chemistry System sets the benchmark for continuous flow technology and is featured in more than 500 scientific publications.



Smooth and accurate pumping

The Asia Syringe Pump sits at the core of the flow system, delivering exceptionally smooth and consistent flow across the full dynamic range.

It features features two independent flow channels, each with an integrated pressure sensor. It delivers accurate flow rates from 1 µL to 10 mL/min with exceptionally smooth pressure output. This precision gives chemists maximum control over flow chemistry experiments, especially in drug discovery applications.



Flexible flow experiments

Asia offers a wide selection of reactors, including glass microreactors, tube reactors, and solid-phase column reactors, available in various configurations and sizes.

Optimized for efficient heat and mass transfer, Asia reactors provide maximum flexibility in designing your flow chemistry experiment.



Flow Chemistry System tailored to your chemistry

Asia modules are available in a variety of pre-configured systems, each designed to perform specific flow chemistry applications.

Whatever system you choose, you can continuously expand your flow chemistry capabilities by adding new modules as needed. This flexibility lets you explore new chemical spaces.

Flow chemistry systems can be as simple or as advanced as your chemistry requires. With fully interchangeable Asia modules, you have the flexibility to configure a system that matches your needs. Take control of your setup and tailor the functionality to suit your chemistry.

If you need help with choosing your system modules, speak to one of our Xperts.



Specifications of the Flow Chemistry System

Temperature Range -100°C to +250°C
Flow Rate 1 μL/min to 10 mL/min per pump channel
Residence Times 1 second to multiple hours
Pressure Range 0 to 20bar (300psi)
Liquid Phase Reactor Volumes 62.5 µL, 250 µL, and 1,000 µL for glass microchips, 4 mL and 16 mL for tube reactors
Solid Phase Reactor Volumes 0.7 mL, 2.4 mL, 5.6 mL, and 12 mL
Wetted Parts Glass, PTFE and PCTFE (stainless steel and hastelloy possible)
Mixing Rapid diffusion mixing
Production Volumes Milligrams to Kilograms

Brochures

Related instruments

Asia Photochemistry System

Modular, flexible, scalable and easy-to-use, it makes modern photochemistry techniques accessible without the limitations of traditional batch requirements.
Accurate temperature control, from -40°C to +80°C
Interchangeable modules can be changed in seconds
