Eco Heating thermostats
Heating thermostats from 20 to 200 °C for economic temperature control thermostating in the lab
The ECO thermostats come in silver (LCD display) or gold (color TFT display) models, equipped with a mini USB interface as standard. The circulation pump can be adjusted to six levels. The ECO heating thermostat line encompasses transparent baths up to 100 °C as well as immersion thermostats and heating thermostats with stainless steel bath up to 200 °C.
Available models:
| ECO E 40 S | ECO E 4 S | ECO E 25 S | ECO E 20 S | ECO E 10 S | ECO E 40 G | ECO E 20 G | ECO E 10 G | ECO E 4 G | ECO E 25 G | |
| Working temperature min. | 20 °C | 20 °C | 20 °C | 20 °C | 20 °C | 20 °C | 20 °C | 20 °C | 20 °C | 20 °C |
| Working temperature max. | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C |
| Temperature stability | 0.01 ± K | 0.01 ± K | 0.01 ± K | 0.01 ± K | 0.01 ± K | 0.01 ± K | 0.01 ± K | 0.01 ± K | 0.01 ± K | 0.01 ± K |
| Bath volume min. / max. | 32.0 / 40.0 L | 3.0 / 3.5 L | 16.0 / 25.0 L | 13.0 / 19.0 L | 7.5 / 11.0 L | 32.0 / 40.0 L | 13.0 / 19.0 L | 7.5 / 11.0 L | 3.0 / 3.5 L | 16.0 / 25.0 L |
| Bath depth | 200 mm | 150 mm | 200 mm | 150 mm | 150 mm | 200 mm | 150 mm | 150 mm | 150 mm | 200 mm |
| Pump pressure max. 50 Hz | 0.55 bar | 0.55 bar | 0.55 bar | 0.55 bar | 0.55 bar | 0.55 bar | 0.55 bar | 0.55 bar | 0.55 bar | 0.55 bar |
| Flow rate max. (pressure) 50 Hz | 22 L/min | 22 L/min | 22 L/min | 22 L/min | 22 L/min | 22 L/min | 22 L/min | 22 L/min | 22 L/min | 22 L/min |
| Interfaces integrated | Mini USB | Mini USB | Mini USB | Mini USB | Mini USB | Mini USB | Mini USB | Mini USB | Mini USB | Mini USB |

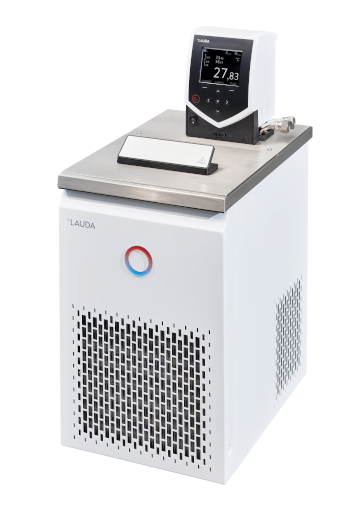

Eco Cooling thermostats
From -50 to 200 °C: Cooling thermostats for economic temperature control in the lab
The ECO thermostats are available in standard silver (LCD display) or gold (color TFT display) models equipped with a mini USB interface. The circulation pump can be adjusted to six levels. The comprehensive model portfolio offers devices with cooling capacities of 180 to 700 watts and minimum temperatures of -15 to -50 °C. The devices of the LAUDA ECO series with the highest performance work with an energy-saving LAUDA SmartCool system.
Available models:
| ECO RE 630 S | ECO RE 420 S | ECO RE 415 S | ECO RE 2025 S | ECO RE 1225 S | ECO RE 1050 S | ECO RE 630 G | ECO RE 2025 G | ECO RE 1050 G | ECO RE 420 G | ECO RE 1225 G | ECO RE 415 G | |
| Working temperature min. | -30 °C | -20 °C | -15 °C | -25 °C | -25 °C | -50 °C | -30 °C | -25 °C | -50 °C | -20 °C | -25 °C | -15 °C |
| Working temperature max. | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C |
| Temperature stability | 0.02 ± K | 0.02 ± K | 0.02 ± K | 0.02 ± K | 0.02 ± K | 0.02 ± K | 0.02 ± K | 0.02 ± K | 0.02 ± K | 0.02 ± K | 0.02 ± K | 0.02 ± K |
| Bath volume min. / max. | 4.6 / 5.7 L | 3.3 / 4.0 L | 3.3 / 4.0 L | 14.0 / 20.0 L | 9.3 / 12.0 L | 8.0 / 10.0 L | 4.6 / 5.7 L | 14.0 / 20.0 L | 8.0 / 10.0 L | 3.3 / 4.0 L | 9.3 / 12.0 L | 3.3 / 4.0 L |
| Cooling output at 20 °C | 0.3 kW | 0.2 kW | 0.18 kW | 0.3 kW | 0.3 kW | 0.7 kW | 0.3 kW | 0.3 kW | 0.7 kW | 0.2 kW | 0.3 kW | 0.18 kW |
| Bath depth | 160 mm | 160 mm | 160 mm | 160 mm | 200 mm | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm | 200 mm | 160 mm |
| Pump pressure max. 50 Hz | 0.55 bar | 0.55 bar | 0.55 bar | 0.55 bar | 0.55 bar | 0.55 bar | 0.55 bar | 0.55 bar | 0.55 bar | 0.55 bar | 0.55 bar | 0.55 bar |
| Flow rate max. (pressure) 50 Hz | 22 L/min | 22 L/min | 22 L/min | 22 L/min | 22 L/min | 22 L/min | 22 L/min | 22 L/min | 22 L/min | 22 L/min | 22 L/min | 22 L/min |
| Interfaces integrated | Mini USB | Mini USB | Mini USB | Mini USB | Mini USB | Mini USB | Mini USB | Mini USB | Mini USB | Mini USB | Mini USB | Mini USB |
