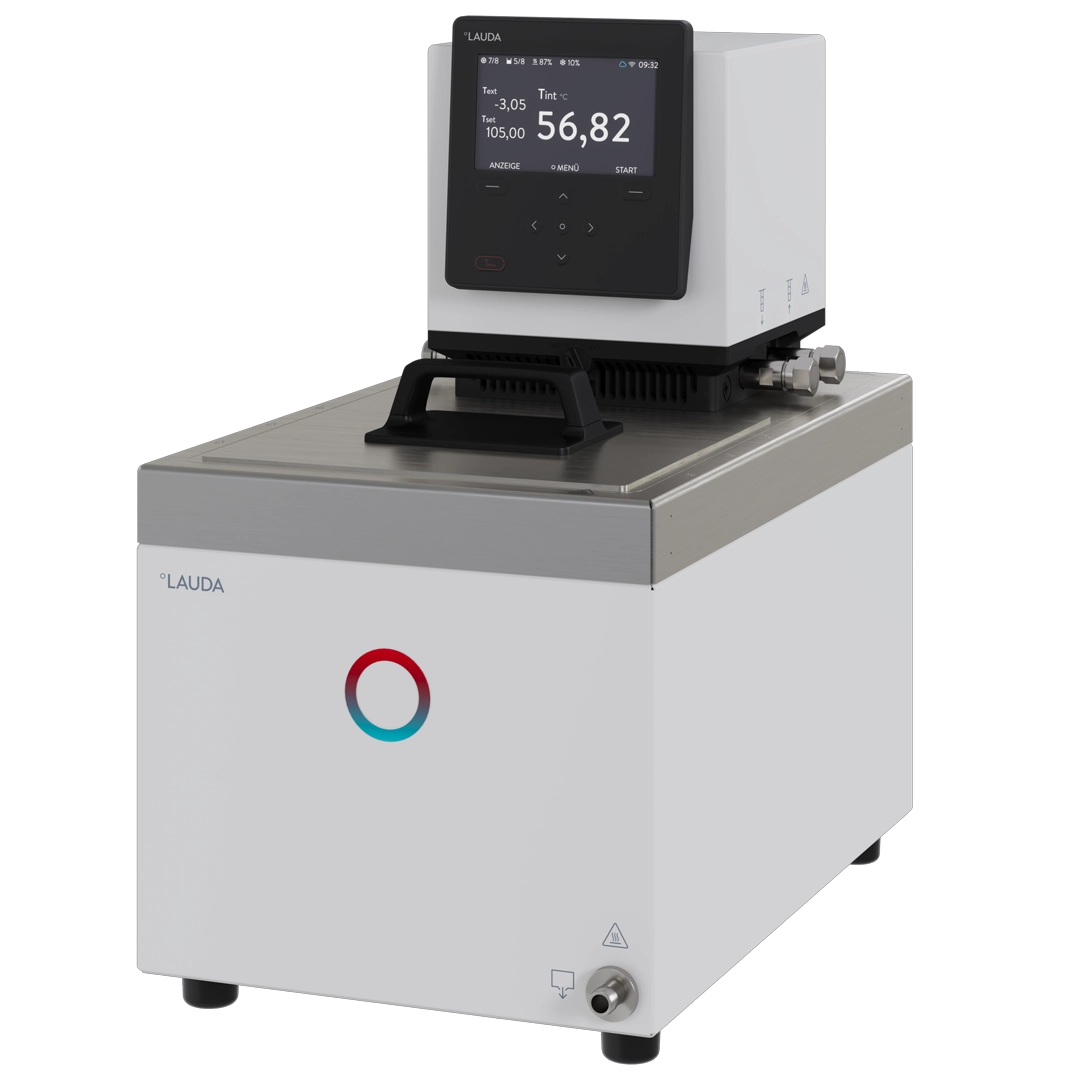

LAUDA Universa MAX bath thermostat
The LAUDA Universa MAX bath thermostat offers advanced control functions, pressure-suction pumps, and exceptional temperature stability. It is the ideal solution for the highest demands.
LAUDA Universa MAX is the premium class for high-performance applications. With 800 W to 1.6 kW cooling output, up to 3.6 kW heating output, and temperature ranges from −90 to 300 °C, it offers maximum temperature stability.
A pressure/suction pump is included, making it ideal for those who don’t compromise.
You can combine the Universa PRO with a large selection of heating and cooling baths:
Heating thermostats
| U 8 M | U 12 M | U 20 M | U 40 M | |
| Min. working temperature | 70 °C | 70 °C | 65 °C | 65 °C |
| Max. working temperature | 300 °C | 300 °C | 300 °C | 300 °C |
| Min. filling volume | 5.8 L | 8.5 L | 9.5 L | 29 L |
| Max. filling volume | 8.5 L | 13 L | 22 L | 42 L |
| Heater power | 3.7 kW | 3.7 kW | 3.7 kW | 3.7 kW |
| Temperature stability | 0.01 ± K | 0.01 ± K | 0.01 ± K | 0.01 ± K |
| Max. discharge pressure 50 Hz | 0.55 bar | 0.7 bar | 1.1 bar | 0.7 bar |
| Max. flow rate (pressure) 50 Hz | 25 L/min | 25 L/min | 32 L/min | 25 L/min |
Cooling thermostats
| U 845 M | U 855 M | U 890 M | U 1645 M | U 2040 M | U 4230 M | |
| Min. working temperature | -45 °C | -55 °C | -90 °C | -45 °C | -40 °C | -30 °C |
| Max. working temperature | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C |
| Min. filling volume | 5 L | 5 L | 5 L | 10.5 L | 9 L | 19 L |
| Max. filling volume | 8 L | 8 L | 8 L | 16.5 L | 21 L | 47 L |
| Heater power | 3.7 kW | 3.7 kW | 3.7 kW | 3.7 kW | 3.7 kW | 3.7 kW |
| Temperature stability | 0.01 ± K | 0.01 ± K | 0.01 ± K | 0.01 ± K | 0.01 ± K | 0.01 ± K |
| Max. discharge pressure 50 Hz | 0.7 bar | 0.7 bar | 0.7 bar | 0.7 bar | 1.1 bar | 1.1 bar |
| Max. flow rate (pressure) 50 Hz | 25 L/min | 25 L/min | 25 L/min | 25 L/min | 32 L/min | 32 L/min |
| Cooling output at 20 °C 50 Hz | 0.8 kW | 1.6 kW | 0.8 kW | 1.6 kW | 0.8 kW | 0.8 kW |
