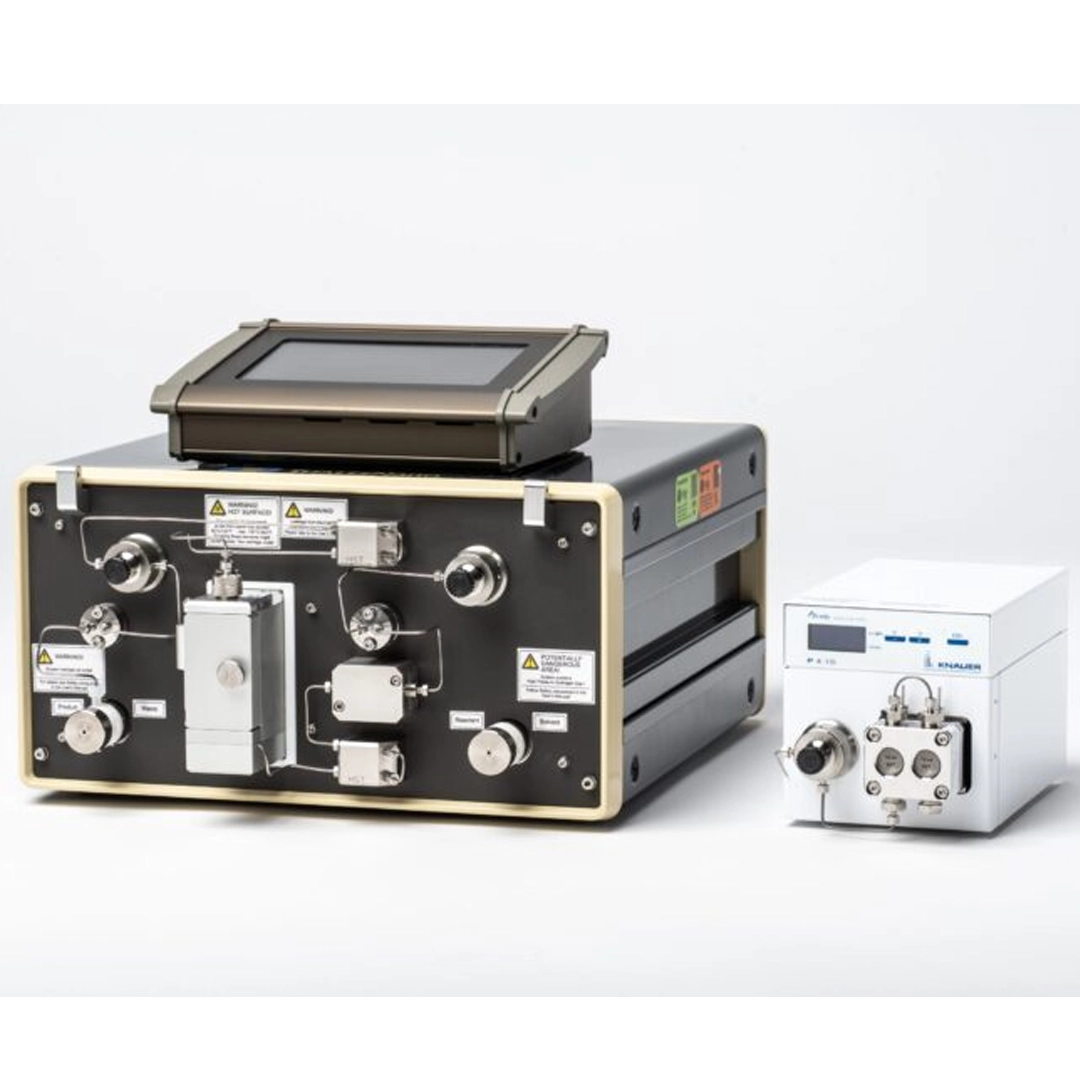

The H-Cube® Hastelloy Pro hydrogenation flow reactor is designed to extend the available reaction space of its renowned stainless steel counterpart, the H-Cube® Pro.
All wetted parts are made from Hastelloy C for improved chemical resistance. With the H-Cube® Pro Hastelloy, working with corrosive reagents becomes easy.
How does it work?
- Hydrogen is generated by the electrolysis of water inside the system.
- The microHPLC pump delivers pure solvent into the system, where it is mixed with hydrogen using a mixing valve.
- The gas-liquid mixture progresses into the reaction zone where the system controls to the user defined reaction conditions (pressure, temperature, and flow rate).
- Once the desired parameters are achieved and the reaction zone achieves stablity, the feed can be switched from the solvent to the reactant solution.
- The reaction mixture passes through a CatCart® (a pre-packed column containing solid catalyst), where the reaction takes place. The product leaves the CatCart®, but the catalyst is retained.
- The product is collected in the collection vial.
- Reactions from milligrams to grams can be performed.
Features
- Hastelloy C pump head
- Hastelloy C tubing
- Hastelloy C CatCart® columns with a wide range of heterogeneous catalysts
- No need for hydrogen cylinders, as hydrogen is generated on-demand by the system from water
- Wide temperature range (10-150°C)
- Wide pressure range (from atmospheric pressure to 100 bar)
- No catalyst handling with pre-filled CatCarts®
- High throughput
- Great reaction control
Applicable corrosive reagents
- Mineral acids and bases
- Strong oxidizers (such as ferric and cupric chlorides)
- Nitric, formic and acetic acids, acetic anhydride
- Wet chlorine
- Sea water and brine solutions
- Hypochlorite and chlorine dioxide solutions
System specifications of the H-Cube Pro Hastelloy
| Technical data | |
|---|---|
| Temperature range | From 10 to 150°C |
| Pressure range | Atmospheric pressure to 100 bar |
| Liquid flow rate | 0.1 – 3 mL/min |
| Optimal liquid flow rates | 0.5 – 2 mL/min |
| Maximum hydrogen production rate | 60 Nml/min (in 100% Bub. Det. Mode) |
| Required water specifications | Deionized water with recommended conductivity of 14 MΏcm |
| Dimensions | Height: 40 cm (including touch screen); width: 37 cm ; depth: 51 cm |
| Weight | 23 kg |
| Power requirements | 115-230 VAC; 5A/115 VAC; 2.5A/230 VAC; 47-63 Hz, 300 W |
| Water reservoir capacity | 300 mL |
